Chapin 150 lb. Tow Behind Spreader 8620B

2.5 out of 5 stars 3 Reviews | 3 Q&A

Chapin 150 lb. Tow Behind Spreader 8620B
Chapin 150 lb. Tow Behind Spreader 8620B
Chapin 150 lb. Tow Behind Spreader 8620B
Chapin 150 lb. Tow Behind Spreader 8620B
Price/Ea.
$361.42

Have a Question? Ask Our Pros!

Email Our Pros
We're here to help
Offline. Leave Us a Message

You May Also Need

Average Rating

2.5 out of 5 stars Rating: 2.7

3 Reviews | 3 Q&A

Product Overview

The Chapin 150 lb. Tow Behind Spreader 8620B is designed to eliminate the hassle of reaching a lever to stop seed or fertilizer from spilling. It helps to prevent burning of lawns and turf and eliminates waste. It features a unique dual impeller design that allows material to spread if the vehicle is in motion and automatically stops when not in motion. This high-quality spreader has a capacity of 150 pounds and protects its load from shock and impact with its 14 inch pneumatic wheels. For precise application, it has an easy to set gate adjustment with 11 incremental settings. Oil impregnated bearings are used to lessen friction on gearbox and axle.

*Please Note:  This spreader is NOT recommended for use with lime products such as pelletized lime, lime powder, and Agri lime.

Product Documents

Features and Specs

For use in Farm, agriculture, livestock, home and garden, turf, landscape
Application Granular fertilizers, granular pesticides, seed, granular weed and feed.
Dimensions 25 x 21 x 31.5
Coverage Area Spread width up to 120 in.
Material / Construction Poly hopper, metal alloy, and powder-coated steel.
Special Features Has unique dual impeller design.
Warranty Limited Lifetime Warranty.
Shipping Weight 43.15 lbs
Manufacturer Chapin (Mfg. Number: 8620B)
UPC 023883086206

Details

FEATURES

  • 14” Pneumatic Tires

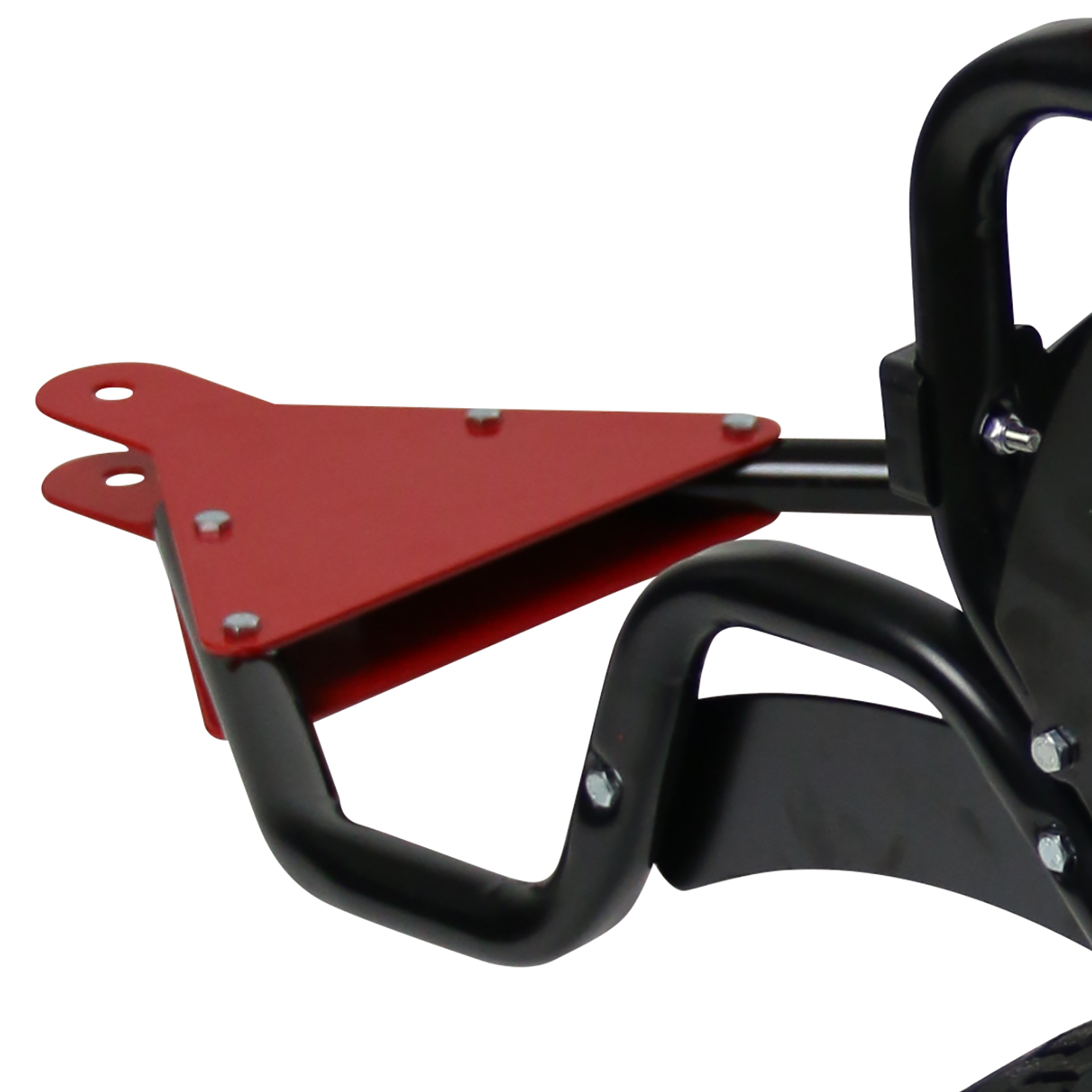

  • Trailer Hitch Heavy duty
  • Gearbox With oil impregnated bronze bearings and grease fitting (cut-away view)
  • Easy To Set Gate Adjustment 11 incremental settings
  • Oil Impregnated Bronze Bearings
  • Auto-Stop Dual Impeller

Technical Specs

  • Model Number 8620B
  • Hopper Construction: Poly
  • Axle Material: Metal-Alloy

  • Hopper Capacity: 150-Pounds

  • Frame Type: Adjustable Steel

  • Frame Construction: Powder-Coated Steel

  • Handle Type: T-Handle With Rubber Grips

  • Handle Material: Metal-Alloy

  • Gate Control: Adjustable Gate Lever

  • Linkage: Solid Steel

  • Pallet Cube: 90.67

  • Gear Box: Enclosed W/ Grease Fitting

  • Carton Cube: 9.57

  • Gear Construction: Metal-Alloy

  • Impeller: Designed For Even Spread Pattern

  • Pallet Quantity: 8

  • Warranty: Limited Lifetime

5 stars   1
4 stars   0
3 stars   0
2 stars   1
1 star   1
Review Search
Sort Reviews
  • 5 of 5 Stars

    Chapin Tow Behind Speader

    By Chris on 09/23/2022

    Loved the product well built and one of the better spreaders I've bought in years past. The fact this spreader has brass bushings verses plastic is a plus and grease fittings for long lasting performance. I recommend this product to others.

    Was this review helpful to you?  YesNo

    3 of 3 people found this review helpful

  • 2 of 5 Stars

    Do not use for fertilizer.

    By Henry on 01/25/2024

    This spreader is only ok for seed, if there is a lot of dust in the seed or spreading over dirt gears WILL Seize up

    Was this review helpful to you?  YesNo

    3 of 3 people found this review helpful

  • 1 of 5 Stars

    The gear box is junk!

    By Michaelz on 04/29/2024

    The spreader is great when working. Read the reviews on Chapin's own website about the gearbox, it is terrible and will seize up after the 1 year warranty. At least domyown does carry this part for 72 dollars with shipping, I know I bought another its my second one so if you buy this spreader order a couple of extra gearboxes you will need them.

    Was this review helpful to you?  YesNo

    2 of 3 people found this review helpful

See all 3 customer reviews

Questions & Answers

Have a question about this product?

Sort Questions
Q
How wide is the spread pattern on the Chapin 150 lb. Tow Behind Spreader 8620B?
A

The distance Chapin 150 lb. Tow Behind Spreader 8620B will spread will depend upon the speed at which you are walking, but can do 10-12 ft.

Was this answer helpful to you?  YesNo

5 of 7 people found this answer helpful

Q
Why can't you use lime in the Chapin 150 lb. Tow Behind Spreader 8620B?
A

The Chapin 150 lb. Tow Behind Spreader 8620B has only been tested for grass seed and fertilizer applications per the product manual. There is no information stating yes or no to use this spreader for lime applicaitons so the best resource would be to contact Chapin directly at 1-800-950-4458 for their recommendations.

Was this answer helpful to you?  YesNo

1 of 2 people found this answer helpful

Q
Can you show a video on how to assemble the Chapin 150 lb. Tow Behind Spreader 8620B

Do you have a video on how to finalize the assembly of the spreader, if so where do I fine it?

A

Unfortunately, we do not have a video on our site demonstrating how to assemble the Chapin 150 lb. Tow Behind Spreader 8620B. However, please click here to be taken to the product manual for assembly instructions.

Was this answer helpful to you?  YesNo

0 of 4 people found this answer helpful

See all 3 customer questions

Chapin 150 lb. Tow Behind Spreader 8620B 2.5 out of 5 stars Rating: 2.7 (3 Reviews / 3 Q&A)

$361.42 + Free Shipping*
